Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

Product Categories
Shenzhen Shine Solar Co., Ltd.
Contact Now

Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

  • 1
  • 2

Brand Name : SHINE OR OEM

Model Number : SN-HETFE200W

Certification : CE, RoHS, SGS, LVD

Place of Origin : China

MOQ : 1

Price : negiotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 days

Packaging Details : 12 pcs per carton and then on pallet.

Size : 1320*800*3mm

Weight : 3.3KGS

Color : White or Black

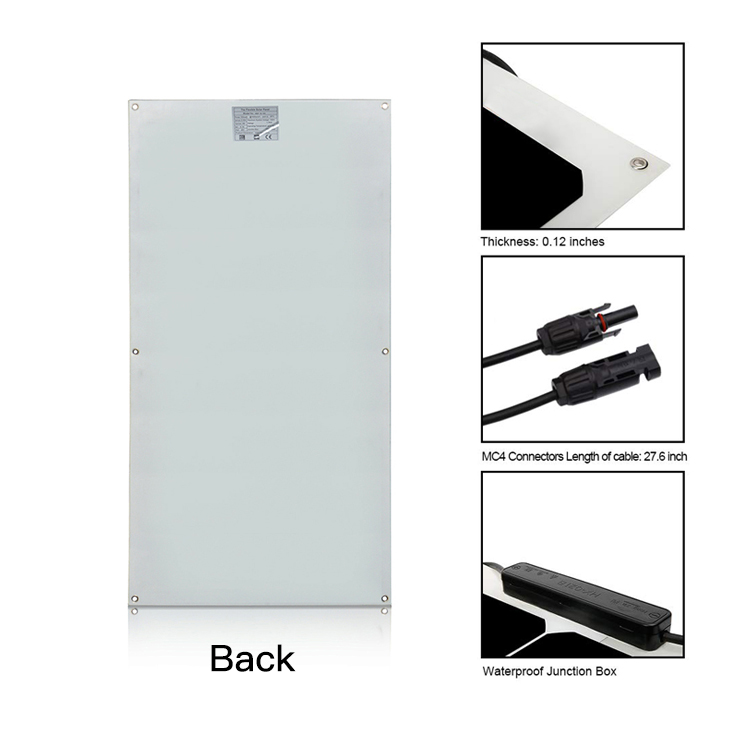

Junction box : IP67 with Diodes

Connectors : 90cm with MC4 connectors

Features : Corrosion Resistant, Flexible, Portable

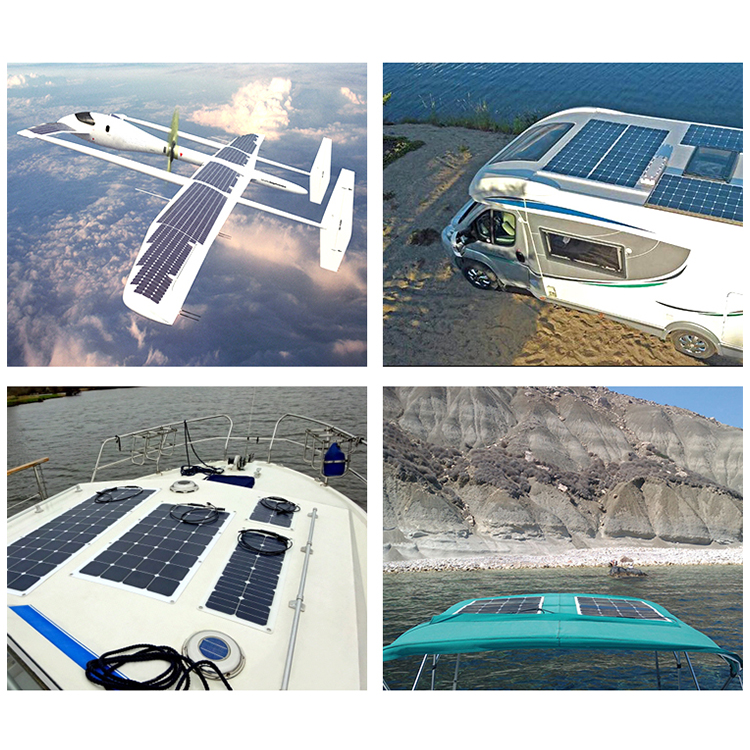

Application : Boat/RV/Vehicle/Home

Warranty : 5 years manufacturing warranty

Contact Now

Sunpower ETFE Black Or White 60 Cells 125X125 200 Watt Flexible Solar Panel

Product Application

Our panel is mainly designed for charging 12V lead-acid batteries, including 12V lithium and other equipment. It utilizes the powerful Monocrystalline Solar Cell with a high efficiency conversion rate to maximize the usage of available sunlight and a MC4 connector makes sure the safety during charging. The semi-flexible Monocrystalline solar panel,being made of robust and durable material,can be curved to a maximum 15 degree arc. It's lightweight and bendable for your quick and easy installation. With inbuilt monocrystalline silicon panels which is leading in the word, our products also are upgraded with advanced ETFE lamination which is known for its extraordinary advantages.

Main Features

1. High Conversion Efficiency: Constructed form high-efficiency monocrystalline solar cells, up to 20.5%~22.5% efficiency, you will get greater power efficiency even though the panel is smaller than a traditional model.

2. Bendable Panel: The plastic back sheet can be curved to a maximum 15 degree arc and can mounted on an RV, boat, cabin or other surface.


3. Lightweight: Lighter and thinner, it only 0.7 in thick and weighs a mere 4.2lb(1.9kg).


4. Easy installation: Unique frameless design features and 6 metal reinforced mounting holes for fixing screws and for easy installation.


5. Convenient: The flexibility of this panel makes it ideal for storage in tight spaces or crowded areas.

100 watt flexible solar panel etfe:

Item 200W ETFE flexible solar panel
Solar panel size : 1320*800*3mm
Product net weight : 3.3KG
Efficiency: 22%
Maximum power(Pm): 200W
Voltage at max power(Vmp): 34.8(V)
Current at max power(Imp): 5.75(A)
Short circuit current(Isc): 6.26(A)
Open circuit voltage(Voc): 41.76(V)
Number of cells and connections : 60Cell
Connector : MC4
Junction box : IP67
Operating Temperature : - 40℃-+85℃

Any size and shape flexible solar panel can be customized according to your requirement.

Other model and wattage:

MODEL PM/w VOC/v ISC/A VMP/V IMP/A C-EFF N/W(kg) DIMENSION
(mm)
SN-HETFE18W 18.0

23.76

 0.99 19.80 0.91 22.00% 0.30 434*277*3
SN-HETFE25W 25.0 21.6 1.51 18.00 1.39 22.00% 0.45 560*277*3
SN-HETFE30W 30.0 21.6 1.82 18.00 1.67 22.00% 0.60 535*378*3
SN-HETFE50W 50.0 21.6 3.03 18.00 2.78 22.00% 0.85 545*535*3
SN-HETFE60W 60.0 23.76 3.3 19.90 3.03 22.00% 0.95 800*405*3
SN-HETFE95W 95.0 19.44 6.39 16.20 5.86 22.00% 1.50 920*535*3
SN-HETFE110W 110.0 22.2 6.48 18.50 5.95 22.00% 1.75 1050*540*3
SN-HETFE120W 120.0 25.06 6.26 20.88 5.75 22.00%

2.00

 1175*540*3
SN-HETFE135W 135.0 27.84 6.34 23.20 5.82 22.00% 2.20 1305*540*3
SN-HETFE150W 150.0 30.62 6.41 25.52 5.88 22.00% 2.50 1450*540*3
SN-HETFE170W 170.0 34.80 6.39 29.00 5.86 22.00% 2.85 1320*670*3
SN-HETFE200W 200.0 41.76 6.26 34.80 5.75 22.00% 3.30 1300*800*3
SN-HETFE220W 220.0 45.94 6.26 38.28 5.75 22.00% 3.90 1435*800*3
SN-HETFE285W 285.0 58.46 6.38 48.72 5.85 22.00% 5.00 1810*800*3

Pictures:

Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

Packing:

12pcs/Carton
